Lima Locomotive Corporation

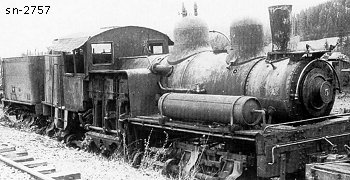

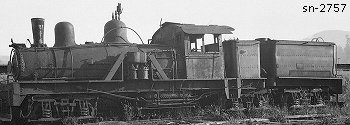

Photo Credit:
Both: by unknown (1940's)

Shop Number 2757 - Built for: Central Coal & Coke Co.
{2,196th Lima Built Shay}
Built:
4-23-1914
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.14
Maximum
Safe Speed:

19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
122,150
Owners:
Central Coal & Coke Co., Missouri & Louisiana RR #116, Neame, LA
(9-28-1914) Delta Land & Tbr. Co., Neame, Carson & Southern RR #116, Neame, LA
(by 1-20-1921) Delta Land & Tbr.Co., Conroe, TX
(2-10-1926) Oregon-American Lbr. Co. #116, Vernonia, OR
(10-1926) Polk Operating Co. #5, Grand Ronde, OR
(3-3-1944) Willamina & Grand Ronde RY Co., Willamina & Grand Ronde RY #5, Grand Ronde, OR
(10-1944) For sale through Washington Machinery and Storage Co.
Disposition: Scrapped
Additional Notes: (by 2-2-1926) Lima visit records indicate Shay rebuilt before shipping to Oregon.
(4-14-1929) Lima visit found Shay in satisfactory operating condition at Grand Ronde, OR
