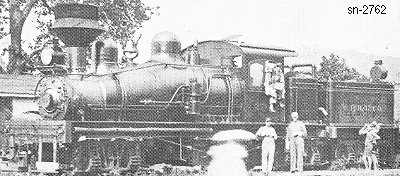

Lima Locomotive Corporation

Photo Credit:
Thomas Lawson Jr. collection (1914)
Shop Number 2762 - Built for: Tellico River Lbr. Co.
{2,201st Lima Built Shay}
Built:
6-18-1914
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.250
Wheel Dia.:
34"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.187"
Boiler Pressure:
In Lbs. (PSI)
225
 Tractive Effort:
42,464 Lbs.
 Factor of
Adhesion:
4.04
 Maximum
Safe Speed:
18.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
139,800
Owners:
Davis Supply Co. (D), Pittsburgh, PA
Tellico River Lbr. Co. #2762, Tellico Plains, TN
Babcock Lbr. and Land Co. #2762, Alcoa (Maryville), TN
Babcock Lbr. and Land Co., Citico & Grand Forks RR #2762, Citico, TN
(1927) Bond-Woolf & Co. #2762, Alcoa, TN, not used
(6-24-1935) Little River Lbr. Co., Little River RR, #2762, Townsend, TN, not used
Disposition: (1936) Scrapped at Townsend, TN
Additional Notes:
