Lima Locomotive Corporation

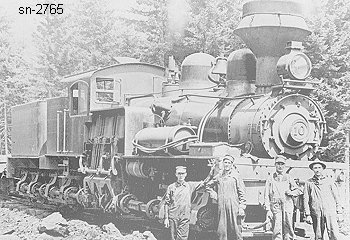

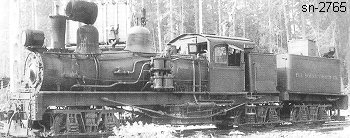

Photo Credit: Top: by Harold A. Hill Right: Pocahontas County Historical Society collection

Shop Number 2765	-	Built for: West Virginia Pulp & Paper Co.
{2,204th Lima Built Shay}

Built: 5-18-1914	Class: C 70-3	Trucks: 3	Cylinders: [#-Dia. x Stroke] 3 - 12 x 15
Gear Ratio: 2.25	Wheel Dia.: 36"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 50"
Boiler Pressure: In Lbs. (PSI) 200	Tractive Effort: 30,375 Lbs.	Factor of Adhesion: 5.27	Maximum Safe Speed: 19.0
Fuel Type: Coal	Fuel Capacity: 5 Tons	Water Capacity: 3,500 Gallons	Empty Weight: As built 126,200
Owners: West Virginia Pulp & Paper Co., Greenbrier Cheat & Elk RR Co. #10, Cass, WV (1-1926) Birmingham Rail & Loco. Co. (D), Birmingham, AL (1-14-1926) R. E. Wood Lbr. Co., Hotchkiss, VA (shipped directly from Cass, WV) (11-1927) Birmingham Rail & Loco. Co. (D) #1698, Birmingham, AL (3-31-1928) The Sound Tbr. Co. #3, Darrington, WA (9-5-1944) Washington Veneer Co. #3, Darrington, WA (along with sn-2868 & 3057)
Disposition: Scrapped
Additional Notes:
