Lima Locomotive Corporation

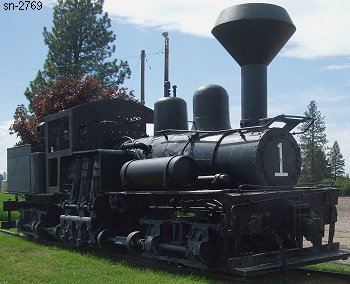

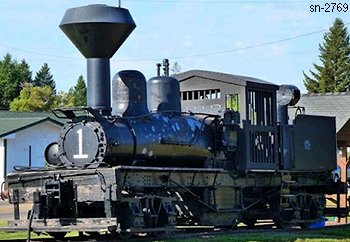

Photo Credit:
Left : George R. Kadelak collection
Right : by Jenny Thorp (6-22-2011)
Shop Number 2769 - Built for: Great Northern RY
{2,208th Lima Built Shay}
Built:
9-19-1914
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:
5.01
Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,400
Owners:
Great Northern RY Co. #1, Somers, MT; For:
Somers Lbr. Co. (Great Northern RY Co.) #1, Somers, MT
(1919) P. L. Howe Lbr. Mills, Eureka, MT
(5-14-1923) Brooks-Scanlon Lbr. Co., Eureka, MT
(6-14-1924) State Lbr. Co. #1, Columbia Falls, MT
(1933) F. H. Stoltz Land & Lbr. Co., Columbia Falls, MT
Disposition: on display @ On display in town park, Columbia Falls, MT
Additional Notes:
SLc Survivor List
Converted to coal burner
Note: bars have been added while on display to keep people out of the cab area.
