Lima Locomotive Corporation

Photo Credit:
Thomas Taber

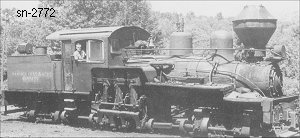

Shop Number 2772 - Built for: Henderson Land & Lbr. Co.
{2,211th Lima Built Shay}
Built:
3-14-1917
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Diam:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
4.54
Maximum
Safe Speed:
13.9
Fuel Type:
Coal
 Fuel Capacity:
2 Tons
 Water Capacity:
2,000 Gallons
Empty Weight:
As built
72,400
Owners:
Henderson Land & Lbr. Co. #4, Fox, AL
Birmingham Rail & Loco. Co. (D) #1509, Birmingham, AL
(1-28-1924) Rockcastle Lbr. Co. (Leatherwood Lbr. Co.), Seth, WV
(11-12-1927) Glade Creek Coal & Lbr. Co. #4, Hamlet, WV
Converted to 36" gauge
(5-17-1929) Babcock Coal & Coke Co., Mann's Creek RY #2, Clifftop, WV
(1952) Royalty Smokeless Coal Co., Mann's Creek RY #2, Clifftop, WV
Disposition: (1956) Scrapped
Additional Notes: Shipped to: Holt, AL
