Lima Locomotive Corporation

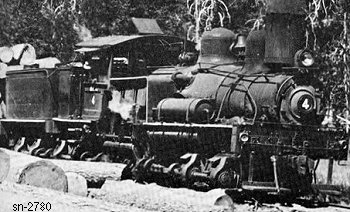

Photo Credit:
Left: Jack Morgan collection
- Right: Idaho State Historical Society
Shop Number 2780 - Built for: Boise Payette Lbr. Co.
{2,219th Lima Built Shay}
Built:
8-14-1914
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.89
Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
116,600
Owners:
Boise Payette Lbr. Co., Intermountain RY #20, Emmett, ID
(1935) Boise Payette Lbr. Co., Intermountain RY #4, Payette, ID
Disposition: (late 1942) Scrapped
Additional Notes: (1942) Jack Morgan, from New Meadows, ID, was only the Chief Master Mechanic on the Intermountain RY in 1942, not the owner of this Shay. He later owned sn-2861 & sn-2862.
