Lima Locomotive Corporation

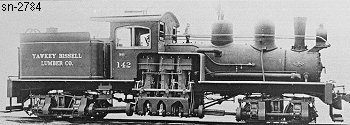

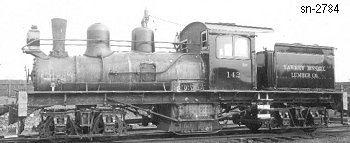

Photo Credit:
Both: George R. Kadelak collection (BP 4-1917)
Shop Number 2784 - Built for: Yawkey-Bissell Lbr. Co.
{2,223rd Lima Built Shay}
Built:
4-11-1917
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
30.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,388 Lbs.
 Factor of
Adhesion:
4.22
 Maximum
Safe Speed:
14.3
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
72,400
Owners:
Yawkey-Bissell Lbr. Co. #142, White Lake, WI
(c1928) Lake Linden Lbr. Co. #142, Lake Linden, MI
Disposition: (8-1951) Scrapped
Additional Notes:
