Lima Locomotive Corporation

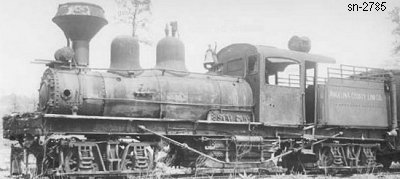

Photo Credit:
by John B. Allen (3-1946) from David Thomas collection

Shop Number 2785	-	Built for: Angelina County Lbr. Co.
{2,224th Lima Built Shay}

Built: 5-12-1915	Class: B 42-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 12
Gear Ratio: 2.529	Wheel Dia.: 29.5"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 42.125"
Boiler Pressure: In Lbs. (PSI) 200	Tractive Effort: 18,763 Lbs.	Factor of Adhesion: 4.33	Maximum Safe Speed: 17.1
Fuel Type: Wood	Fuel Capacity: 1.5 Cords	Water Capacity: 1,560 Gallons	Empty Weight: As built 68,000
Owners: Angelina County Lbr. Co., Angelina & Neches River RR #107, Keltys, TX Angelina County Lbr. Co., Angelina & Neches River RR #107, New Camp, TX (1923) San Augustine County Lbr. Co., Keltys, TX
Disposition: (after 3-1946) Scrapped
Additional Notes: Shipped to: New Camp, TX
