Lima Locomotive Corporation

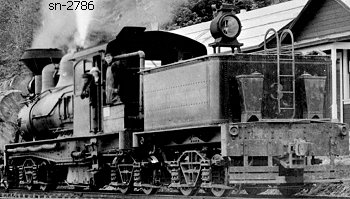

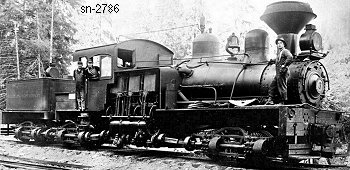

Photo Credit:
Both: by Philip Wischmeyer
Shop Number 2786 - Built for: C. A. Goodyear Lbr. Co.
{2.225th Lima Built Shay}
Built:
9-4-1914
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
34,172 Lbs.
 Factor of
Adhesion:
4.68
 Maximum
Safe Speed:
16.9
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
132,400
Owners:
C. A. Goodyear Lbr. Co. #3, Seattle, WA: For:
Goodyear Log. Co. #3, Sekiu, WA
(12-1921) Wrecked and completely rebuilt
(9-4-1924) Bloedel Donovan Lbr. Mills #3, Sekiu, WA
(4-12-1945) Rayonier Inc. #3 (1st), Sekiu, WA
Disposition: (1950) Scrapped
Additional Notes: Shipped to: Seattle, WA
