Lima Locomotive Corporation

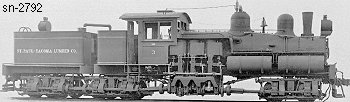

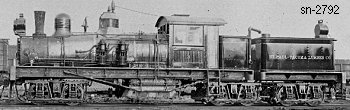

Photo Credit:
Both: George R. Kadelak collection (right BP 4-1917)
Shop Number 2792 - Built for: St. Paul & Tacoma Lbr. Co.
{2,231st Lima Built Shay}
Built:
4-20-1917
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.07
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
122,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
St. Paul & Tacoma Lbr. Co. #3, Ohop (?Kapowsin), WA
(11-22-1929) Out of service
Disposition: (4-1948) Scrapped
Additional Notes: Shipped to: Puyallup River, WA
Converted to oil burner
