Lima Locomotive Corporation

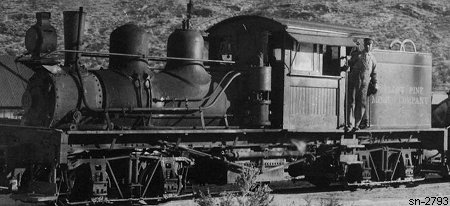

Photo Credit:
David Thomas collection
Shop Number 2793 - Built for: Yellow Pine Mining Co.
{2,232nd Lima Built Shay}
Built:
7-15-1916
Class:
A
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,886 Lbs.
 Factor of
Adhesion:
4.98
Maximum
Safe Speed:
10.1
Fuel Type:
Oil
Fuel Capacity:
200 Gals.
Water Capacity:
1,250 Gallons
Empty Weight:
As built
44,600
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Yellow Pine Mining Co. #2, Jean, NV
(8-1927) Wrecked, not repaired
Disposition: (by 9-28-1929) Scrapped
Additional Notes:
