Lima Machine Works

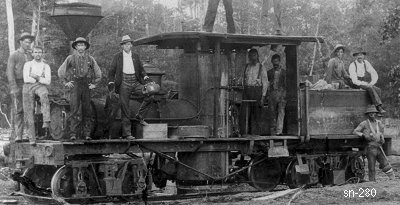

Photo Credit:
David Price & Tony Howe collection
Shop Number 280 - Built for: E. F. Breckenridge
{244th Lima Built Shay}
Built:
2-2-1890
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7x12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
48"
Boiler:
[Style - Dia.]
Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,813 Lbs.
 Factor of
Adhesion:
3.39
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
486 Gallons
Empty Weight:
As built
22,500
Owners:
Brackenridge Lbr. Co. #280, Maxwell, LA
(by 1911) Brackenridge Lbr. Co. #280, Springfield, LA
(2-14-1920) [62"] G. H. A. Thomas & Co., Hammond, LA,
Disposition: Scrapped
Additional Notes:
