Lima Locomotive Corporation

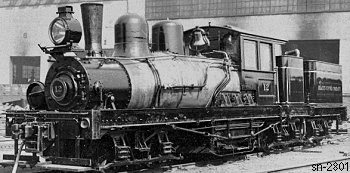

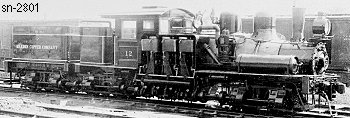

Photo Credit:
Both: George R. Kadelak collection (BP 9-1914)
Shop Number 2801 - Built for: Braden Copper Co.
{2,240th Lima Built Shay}
Built:
9-21-1914
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
30"
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
26,820 Lbs.
 Factor of
Adhesion:
4.53
 Maximum
Safe Speed:
15.1
Fuel Type:
Coal
Fuel Capacity:
3.5 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
94,620
Owners:
Braden Copper Co. #12, Rancagua, Chile
Disposition: Scrapped
Additional Notes: Shipped to: Valparaiso, Chile
Converted to oil burner
