Lima Locomotive Corporation

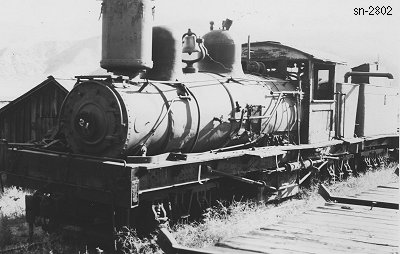

Photo Credit:
John Henderson collection (8-1936)
Shop Number 2802 - Built for: Boise Payette Lbr. Co.
{2,241st Lima Built Shay}
Built:
11-12-1914
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,376 Lbs.
 Factor of
Adhesion:
5.03
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
121,000
Owners:
Boise Payette Lbr. Co., Intermountain RY #21, Emmett, ID
(1915) Wrecked and rebuilt
(4-28-1938) For sale through Washington Machinery and Storage Co. (D)
Disposition: (12-7-1938) Scrapped (dismantled)
Additional Notes: Shipped to: Boise, ID
