Lima Locomotive Corporation

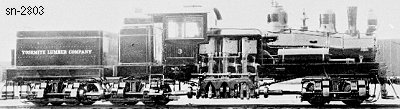

Photo Credit:
George R. Kadelak collection (BP 11-1914)
Shop Number 2803 - Built for: Yosemite Lbr. Co.
{2,242nd Lima Built Shay}
Built:
11-12-1914
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.529
Wheel Dia.:
34.4"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
34,142 Lbs.
 Factor of
Adhesion:
4.32
 Maximum
Safe Speed:
16.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
118,800
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Yosemite Lbr. Co. #3, Merced Falls, CA
Yosemite Sugar Pine Lbr. Co. #3, Merced Falls, CA
(5-8-1943) M. Davidson (D), Stockton, CA
(5-8-1943) For sale as-is-where-is, Merced Falls, CA
Disposition: (4-1947) Scrapped
Additional Notes:
