Lima Locomotive Corporation

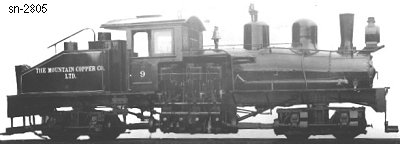

Photo Credit:

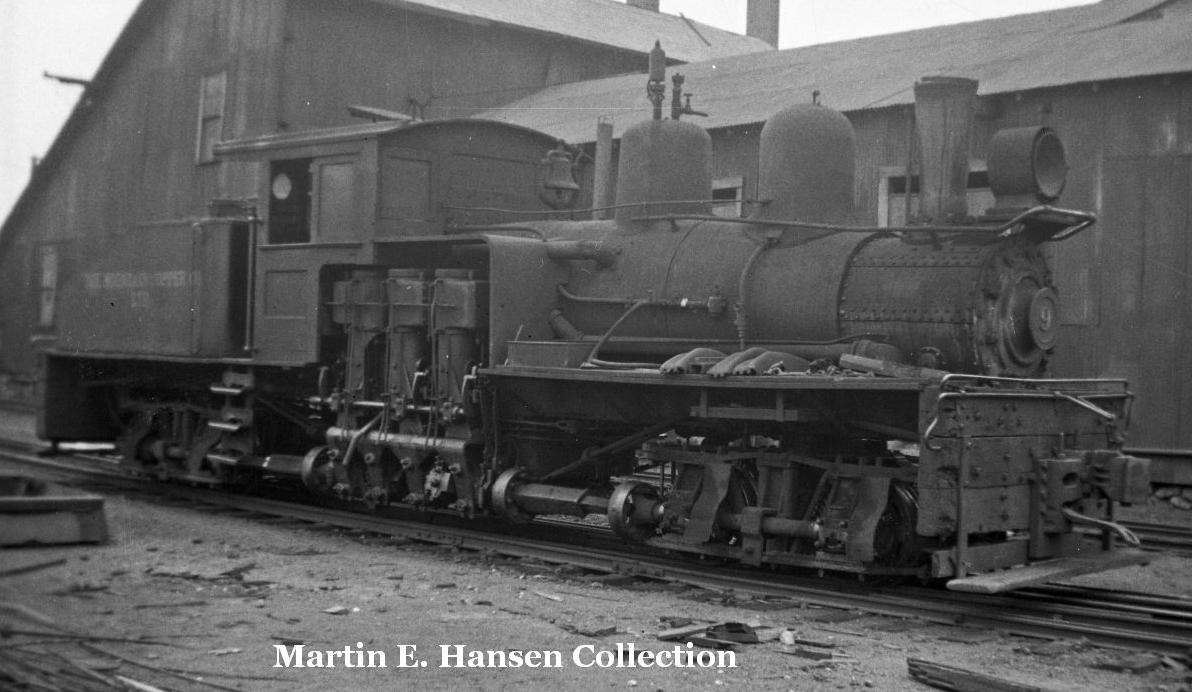

Top: Martin E. Hansen collection
Bottom: George R. Kadelak collection (BP 6-1915)
Shop Number 2805 - Built for: Mountain Copper Co. Ltd.
{2,244th Lima Built Shay}
Built:
6-2-1915
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
24.5"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
3.67
 Maximum
Safe Speed:
13.9
Fuel Type:
Oil
Fuel Capacity:
400 Gals.
Water Capacity:
1,400 Gallons
Empty Weight:
As built
62,500
Owners:
Mountain Copper Co. Ltd. #9, Mococo, CA
Disposition: (1947) Scrapped
Additional Notes:
