Lima Locomotive Corporation

Photo Credit:
George R. Kadelak collection

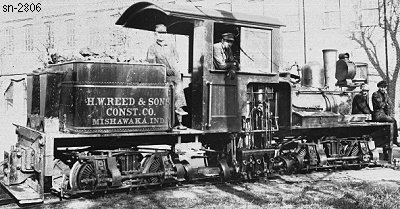

Shop Number 2806 - Built for: H. W. Reed & Sons Construction Co.
{2,245th Lima Built Shay}
Built:
9-22-1914
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
3.077
Wheel Dia.:
22"
Gauge:
24"
Boiler:
[Style - Dia.]
ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
6,042 Lbs.
 Factor of
Adhesion:
4.73
 Maximum
Safe Speed:
8.5
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
24,200
Owners:
H. W. Reed & Sons Construction Co. #1, Mishawaka, IN
(3-6-1926) For sale
Disposition: Scrapped
Additional Notes:
