Lima Locomotive Corporation

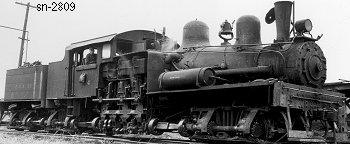

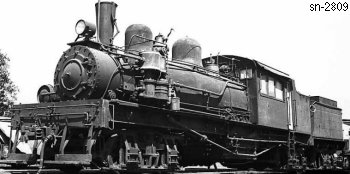

Photo Credit:
Left: Martin E. Hansen collection (1939)
Right: by Doug Richter (4-7-1947)
Shop Number 2809 - Built for: Fruit Growers Supply Co.
{2,248th Lima Built Shay}
Built:
2-15-1915
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
35,026 Lbs.
 Factor of
Adhesion:
5.21
Maximum
Safe Speed:
20.9
Fuel Type:
Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
150,800
Owners:
Fruit Growers Supply Co. #4, Hilt, CA
Disposition: (1953) Scrapped
Additional Notes:
