Lima Machine Works

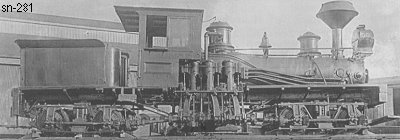

Photo Credit:
C. W. Witbeck collection
Shop Number 281 - Built for: Lanier & Carter
{245th Lima Built Shay}
Built:
4-5-1890
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9x8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,762 Lbs.
 Factor of
Adhesion:
4.69
 Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
825 Gallons
Empty Weight:
As built
36,000
Owners:
Lanier & Carter, Kymulga & Coosa River RR #1, Kymulga, AL
Southern Iron & Equipment Co. (D) #280, Atlanta, GA
(2-10-1904) Vredenburgh Saw Mill Co. #1 (2nd)¸ Pine Hill, AL
Disposition: Scrapped 6-20-1927
Additional Notes:
