Lima Locomotive Corporation

Photo Credit:
W. Tompkins collection

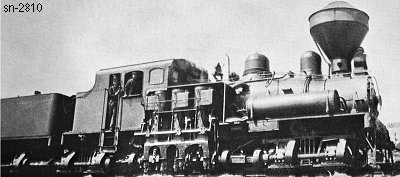

Shop Number 2810 - Built for: Champion Lbr. Co.
{2,249th Lima Built Shay}
Built:
6-24-1915
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
40,407 Lbs.
Factor of
Adhesion:

4.94
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
4,000 Gallons
Empty Weight:
As built
159,600
Owners:
Champion Lbr. Co. #90, Crestmont, NC
(5-1919) Central Pennsylvania Lbr. Co. #71, Laquin, PA
Disposition: Scrapped
Additional Notes:
