Lima Locomotive Corporation

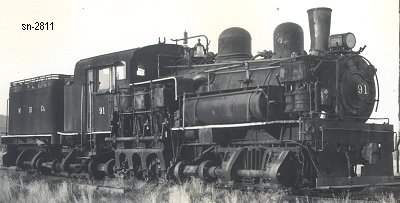

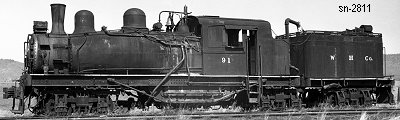

Photo Credit:
Top:by Philip C. Johnson from Archives and Special Coll, Mansfield Lib, Univ of MT
Bottom: Marc Reusser collection
Shop Number 2811 - Built for: Champion Lbr. Co.
{2,250th Lima Built Shay}
Built:
6-24-1915
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
40,407 Lbs.
Factor of
Adhesion:

4.94
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
4,000 Gallons
Empty Weight:
As built
159,600
Owners:
Champion Lbr. Co. #91, Crestmont, NC
(1920) Red River Lbr. Co. #91, Westwood, CA
(6-9-1934) Walker-Hovey Lbr. Co. #91, Macdoel, CA
(7-19-1937) Leased to: Big Lakes Box Co. #91, Canby, CA
(1943) Ralph L. Smith Lbr. Co. #91, Canby, CA
(2-14-1948) boiler exploded
Disposition: (1949) Scrapped at Canby, CA

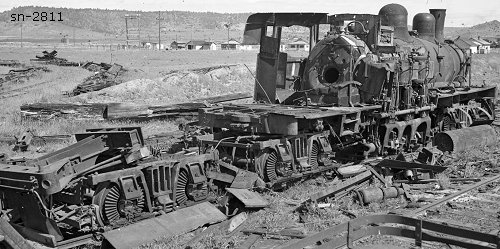

Photo from Martin E. Hansen collection
Additional Notes: Converted to oil burner
