Lima Locomotive Corporation

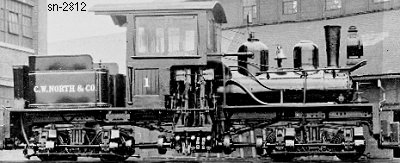

Photo Credit:
George R. Kadelak collection (BP 5-1915)
Shop Number 2812 - Built for: C. W. North & Co.
{2,251st Lima Built Shay}
Built:
5-21-1915
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
3.077
Wheel Dia.:
22"
Gauge:
24"
Boiler:
[Style - Dia.]
ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
6,042 Lbs.
 Factor of
Adhesion:
4.43
 Maximum
Safe Speed:
8.5
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
22,400
Owners:
A. H. Frey #1, Bluffton, IN; For:
C. W. North & Co. #1, Yoder, IN
(by 7-1-1919) Federal Paving Co. #1, Paw Paw, MI
(1919) rebuilt by Lima Locomotive Works, Lima, OH
(by 1-24-1921) Alzina Construction Co., Clatham, IL
(5-8-1923) Alzina Construction Co., Deckerville, MI
(12-8-1925 ) For sale
Disposition: Scrapped
Additional Notes:
