Lima Locomotive Works, Inc.

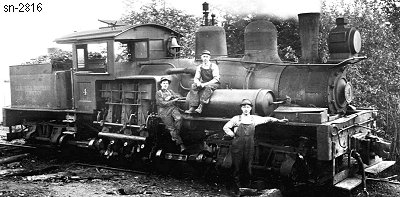

Photo Credit:
George R. Kadelak collection
Shop Number 2816 - Built for: Campbell Brothers Lbr. Co.
{2,255th Lima Built Shay}
Built:
5-18-1916
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.11
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,300
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Campbell Brothers Lbr. Co. #4, Woodinville, WA
(10-15-1931) Snellstrom Brothers #4, Vaughn, OR
Bohemia Lbr. Co. #1, Dorena, OR
Disposition: Scrapped
Additional Notes:
