Lima Locomotive Corporation
Photo Credit:

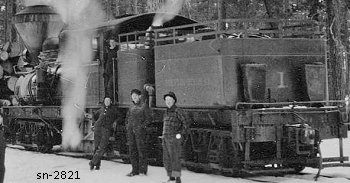

Left: Martin E. Hansen collection

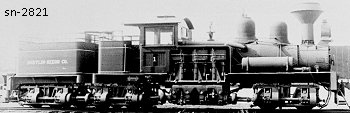

Right: George R. Kadelak collection (BP 9-2-1915)
Shop Number 2821 - Built for: The Shevlin-Hixon Co.
{2,260th Lima Built Shay}
Built:
9-2-1915
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820Lbs.
Factor of
Adhesion:

4.68
Maximum
Safe Speed:

15.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
102,000
Owners:
The Shevlin-Hixon Co. #1, Bend, OR
(c1924) Zimmerman, Wells & Brown Co. (D), Portland, OR
(10-17-1924) National Lbr. & Mfg. Co. #1, Cedarville, WA
(1927) Schafer Brothers Log. Co. #12, Brady, WA
(10-14-1939) Mullenix Brothers Inc. #12, Pe Ell, WA
Disposition: Scrapped
Additional Notes:
