Lima Locomotive Works, Inc.

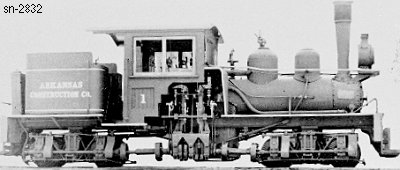

Photo Credit:
George R. Kadelak collection (BP 3-1916)
Shop Number 2832 - Built for: Arkansas Construction Co.
{2,271st Lima Built Shay}
Built:
3-2-1916
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
3.077
Wheel Dia.:
22"
Gauge:
24"
Boiler:
[Style - Dia.]
ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
6,042 Lbs.
 Factor of
Adhesion:
4.94
 Maximum
Safe Speed:
8.5
Fuel Type:
Coal
Fuel Capacity:
0.75 Ton
Water Capacity:
500 Gallons
Empty Weight:
As built
24,800
Owners:
Arkansas Construction Co. #1, Prague, AR
Gregory & Wilson, Newport, AR
Disposition: Scrapped
Additional Notes:
