Lima Locomotive Works, Inc.

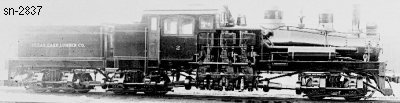

Photo Credit:
Left: by Albert Farrow (1952)
Right: George R. Kadelak collection (BP 6-1916)
Shop Number 2837 - Built for: Clear Lake Lbr. Co.
{2,276th Lima Built Shay}
Built:
6-24-1916
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 49.875"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
35,026 Lbs.
Factor of
Adhesion:

5.28
Maximum
Safe Speed:

20.9
Fuel Type:
Coal / Oil
Fuel Capacity:
5 Tons / 1,200 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
154,500
Owners:
Clear Lake Lbr. Co. #2 (1st), Clear Lake, WA
(1929) Puget Sound Pulp & Tbr. Co. #2, Clear Lake, WA
(12-1944) Puget Sound Pulp & Tbr. Co.- English Unit #2, Conway, WA
Disposition: (1952) Scrapped
Additional Notes:
