Lima Locomotive Works, Inc.

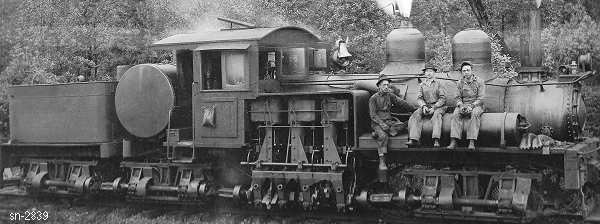

Photo Credit:
by Darius Kinsey
Shop Number 2839 - Built for: Stimson Tbr. Co.
{2,278th Lima Built Shay}
Built:
3-18-1916
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
4.82
Maximum
Safe Speed:
15.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
104,400
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Stimson Tbr. Co., Inc. #2, Belfair, WA
(by 1928) Converted to oil burner with round tank
(1932) Stimson Lbr. Co. #2, Seghere, OR
Disposition: (1950 ) Scrapped
Additional Notes:
