Lima Locomotive Works, Inc.

Photo Credit:
Martin E. Hansen collection

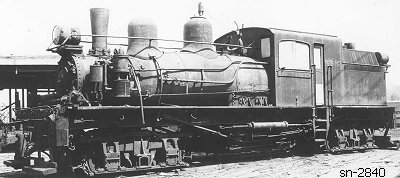

Shop Number 2840 - Built for: Western Cooperage Co.
{2,279th Lima Built Shay}
Built:
4-8-1916
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.222
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,685 Lbs.
 Factor of
Adhesion:
5.48
Maximum
Safe Speed:
17.2
Fuel Type:
Oil
Fuel Capacity:
950 Gals.
Water Capacity:
1,750 Gallons
Empty Weight:
As built
105,500
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Western Cooperage Co., Astoria Southern RY #3, Olney, OR
Big Creek Log. Co. #3, Olney, OR
Gales Creek Log. Co. #3, Glenwood, OR
(5-18-1928) Standing in shed at Glenwood, OR
(by 10-1936) For sale
Disposition: Scrapped
Additional Notes:
