Lima Locomotive Corporation

Photo Credit:

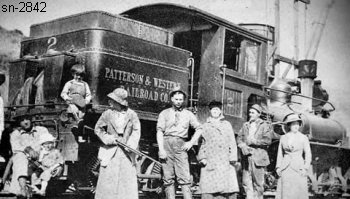

Left: by Bill Hurd from George R. Kadelak collection (BP 2-1916)
Right: Randolph Brandt collection
Shop Number 2842 - Built for: Patterson & Western RR
{2,281st Lima Built Shay}
Built:
2-18-1916
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,334 Lbs.
 Factor of
Adhesion:
5.66
Maximum
Safe Speed:
10.1
Fuel Type:
Oil
Fuel Capacity:
400 Gals.
Water Capacity:
730 Gallons
Empty Weight:
As built
39,600
Owners:
Patterson & Western RR Co. (Mineral Products Co.), Patterson & Western RR #2, Patterson, CA
United Commercial Co. (D), San Francisco, CA
(2-6-1922) California Door Co. #9, Diamond Springs, CA
(1928) For sale, not sold
Disposition: (1934) Still in Diamond Springs, CA, later Scrapped
Additional Notes: Not used on Diamond & Caldor RY
