Lima Locomotive Works, Inc.
Photo Credit:
Left: David Thomas collection
Right: John Henderson collection

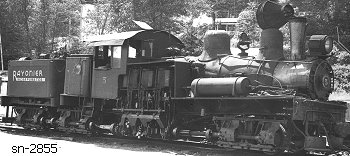

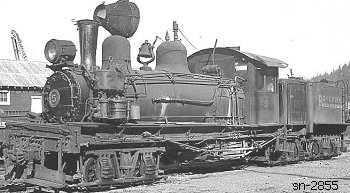

Shop Number 2855 - Built for: Bloedel-Donovan Lbr. Mills
{2,294th Lima Built Shay}
Built:
6-9-1916
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.03
Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
125,300
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Bloedel-Donovan Lbr. Mills #5, Delvan, WA
(by 1-1926) Bloedel Donovan Lbr. Mills #5, Sekiu, WA
(4-12-1945) Rayonier, Inc. #5, Sekiu, WA
Disposition: (1955) Scrapped
Additional Notes:
