Lima Locomotive Works, Inc.

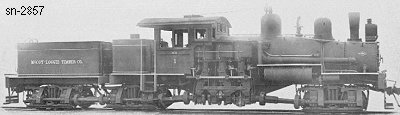

Photo Credit:
Left: by Clark Kinsey (c1928) - Right: George R. Kadelak collection (BP 5-1917)
Shop Number 2857 - Built for: McCoy-Loggie Tbr. Co.
{2,296th Lima Built Shay}
Built:
5-18-1917
Class:
C
80-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
35,026 Lbs.
Factor of
Adhesion:

5.30
Maximum
Safe Speed:

20.9
Fuel Type:
Coal / Oil
Fuel Capacity:
5 Tons / 1,200 Gals.
Water Capacity:
3,500 Gallons
Empty Weight:
As built
154,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
McCoy-Loggie Tbr.Co. #1, Kulshan, WA
(c1923) Nooksack Tbr. Co. #1, Deming, WA
(1-6-1924) St. Paul & Tacoma Lbr. Co. #9, Ohop, WA
Disposition: (12-1947) Scrapped
Additional Notes: Shipped to: Bellingham, WA
