Lima Machine Works

Photo Credit:
George R. Kadelak collection

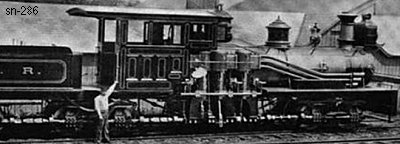

Shop Number 286 - Built for: F.H. & C.W. Goodyear
{250th Lima Built Shay}
Built:
6-19-1890
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14x12
Gear Ratio:
2.056
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 52"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
30,512 Lbs.
 Factor of
Adhesion:
4.33
Maximum
Safe Speed:
18.6
Fuel Type:
Coal
Fuel Capacity:
6 Tons
Water Capacity:
2,500 Gallons
Empty Weight:
As built
102,200
Owners:
F.H. & C.W. Goodyear, Sinnemahoning Valley RR #9, Austin, PA
(2-4-1919) Potato Creek RR Co., Potato Creek RR #9, Norwich (Keating Summit), PA
Disposition: Scrapped
Additional Notes: F.H. & C.W. Goodyear was Frank Henry and his brother, Charles Waterhouse Goodyear
