Lima Locomotive Works, Inc.

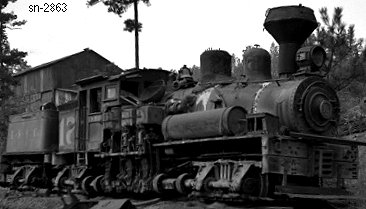

Photo Credit:
by John C. Hawkins (4-12-1960)
Shop Number 2863 - Built for: Cherry River Boom & Lbr. Co.
{2,302nd Lima Built Shay}
Built:
1-8-1917
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
40"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
36,367 Lbs.
 Factor of
Adhesion:
5.42
 Maximum
Safe Speed:
23.2
Fuel Type:
Coal
Fuel Capacity:
6 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
157,600
Owners:
Cherry River Boom & Lbr. Co. #17, Richwood, WV
(1947) Twin Seam Mining Co. #17, Kellerman, AL
Disposition: (3-1963) Scrapped at Kellermann, AL
Additional Notes:
