Lima Locomotive Works, Inc.

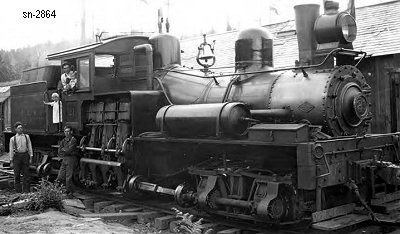

Photo Credit:
by Clark Kinsey

Shop Number 2864	-	Built for: Big Creek Log. Co.
{2,303rd Lima Built Shay}

Built: 1-27-1917	Class: B 45-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 12
Gear Ratio: 2.05	Wheel Dia.: 29.5"	Gauge: std.	Boiler: [Style - Dia.] W.T. - 44"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 16,886 Lbs.	Factor of Adhesion: 5.78	Maximum Safe Speed: 17.1
Fuel Type: Oil	Fuel Capacity: 800 Gals.	Water Capacity: 1,560 Gallons	Empty Weight: As built 80,800
Owners: Hofius Steel & Equip. Co. (D), Seattle, WA Big Creek Log. Co. (J. K. Gamble) #21, Knappa, OR C. H. Wheeler Lbr. Co., Cochran, OR (6-20-1928) Benson Tbr. Co. #2, Clatskanie, OR
Disposition: Scrapped
Additional Notes: Shipped to: Kerry, OR
