Lima Locomotive Works, Inc.

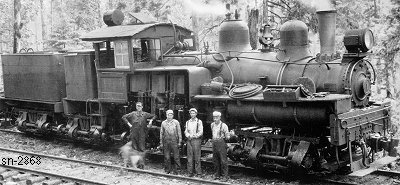

Photo Credit:
by Timber Views Co. (6-1936)
Shop Number 2868 - Built for: The Sound Tbr. Co.
{2,307th Lima Built Shay}
Built:
9-8-1916
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.13
 Maximum
Safe Speed:
19.0
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
128,400
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
The Sound Tbr. Co. #1, Darrington, WA
(9-5-1944) Washington Veneer Co. #1, Darrington, WA
Disposition: Scrapped
Additional Notes:
