Lima Locomotive Works, Inc.

Photo Credit:
by Bert Kellogg

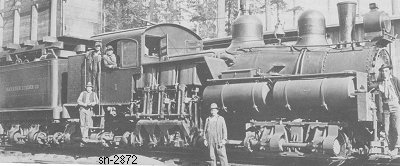

Shop Number 2872 - Built for: Danaher Lbr. Co.,
{2,311th Lima Built Shay}
Built:
1-27-1917
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.31
Maximum
Safe Speed:

19.0
Fuel Type:
Coal / Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
4,000 Gallons
Empty Weight:
As built
129,600
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Danaher Lbr. Co. #1, Darrington, WA
(5-13-1922) Cavano Log. Co., Arlington, WA
Andron Log. Co., Mayfield, WA
Skamania Log. Co., Skamania, WA
North Bend Tbr. Co. #4, North Bend, WA
Disposition: (8-6-1942) Scrapped
Additional Notes:
