Lima Locomotive Works, Inc.

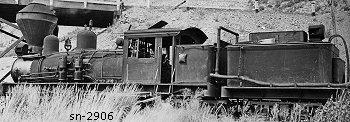

Photo Credit:
by Albert Farrow (1943)

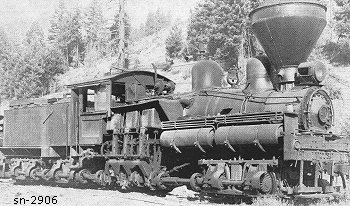

Photo Credit:
Left: Martin E. Hansen collection
Right: by Albert Farrow (1943)
Shop Number 2906 - Built for: A. H. Guthrie & Co., Inc
{2,345th Lima Built Shay}
Built:
4-30-1917
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.16
Maximum
Safe Speed:

19.0
Fuel Type:
Coal / Oil
Fuel Capacity:
1,500 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
128,000
Owners:
A. Guthrie & Co., Inc. #215, Casland, WA
Cascade Lbr. Co., Swauk Prairie, WA
(1946) Stored at NP interchange
(1949) Stored at Easton, WA
Disposition: (1954) Scrapped
Additional Notes:
