Lima Locomotive Works, Inc.

Photo Credit:
by Hugh Comer

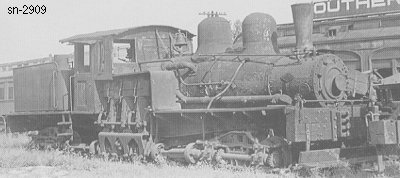

Shop Number 2909 - Built for: Vredenburgh Sawmill Co.
{2,348th Lima Built Shay}
Built:
6-14-1917
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
4.39
 Maximum
Safe Speed:
13.9
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
74,500
Owners:
Vredenburgh Saw Mill Co. #8, Vredenburgh, AL
(5-21-1929) Southern Iron & Equip. Co. (D) #2254, Atlanta, GA
Disposition: (1950) Scrapped at Atlanta, GA
Additional Notes: Shipped to: Corduroy, AL
