Lima Locomotive Works, Inc.

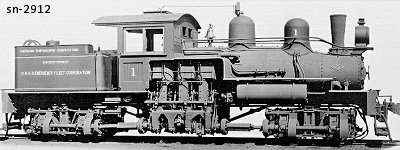

Photo Credit:
George R. Kadelak collection (BP 6-1918)
Shop Number 2912 - Built for: Carolina Shipbuilding Corp.
{2,351st Lima Built Shay}
Built:
6-8-1918
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.30
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
72,600
Owners:
Carolina Shipbuilding Corp. #1, Wilmington, NC
Southern Iron & Equip. Co. (D) #1501, Atlanta, GA
(11-12-1919) Fidelity Lbr. Co. (Long-Bell Lbr. Co.) #12, Doucette, TX
(11-1-1922) Long-Bell Lbr. Co., Doucette, TX
Disposition: Scrapped
Additional Notes:
