Lima Locomotive Works, Inc.

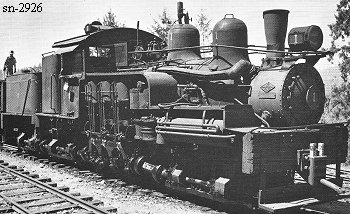

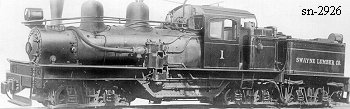

Photo Credit:
Left: Clevis & Debbie Jones collection
Right: R. S. Polkinghorn collection
Shop Number 2926 - Built for: Swayne Lbr. Co.
{2,362nd Lima Built Shay}
Built:
8-2-1917
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
25,820 Lbs.
Factor of
Adhesion:

4.71
Maximum
Safe Speed:

15.1
Fuel Type:
Oil
Fuel Capacity:
1,000 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
101,700
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Swayne Lbr. Co. #3 , Swayne Hill, CA
(1917) Swayne Lbr. Co. #3 (1st) later #1, Oroville, CA
(1-7-1942) Michigan-California Lbr. Co. #1 (2nd), Camino, CA
Disposition: (1951) Scrapped
Additional Notes: Shipped to: Marysville, CA
(6-14-24) Wrecked
(3-17-1928) New girder frame being applied (built with I-beam frame)
(1929) home-made piston valves installed
