Lima Locomotive Works, Inc.

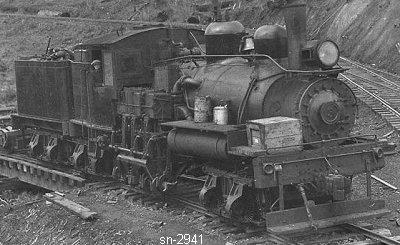

Photo Credit:
Martin E. Hansen collection
Shop Number 2941 - Built for: The Shevlin-Hixon Co.
{2,376th Lima Built Shay}
Built:
10-16-1917
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
30,375 Lbs.
Factor of
Adhesion:

5.17
Maximum
Safe Speed:

19.0
Fuel Type:
Wood / Coal
Fuel Capacity:
3 Cords / 5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
128,200
Owners:
The Shevlin-Hixon Co. #3, Bend, OR
(by 8-21-1921) Eagle Lbr. Co., Westimber (Cochran), OR
(4-22-1926) C. H. Wheeler Lbr. Co. #9, Cochran, OR
(11-27-1926) Blue Lake Log. Co., Cochran, OR
(1-4-1932) Leased to: Columbia Contract Co. #9, Astoria, OR
Disposition: (1953) Scrapped
Additional Notes:
