Lima Machine Works

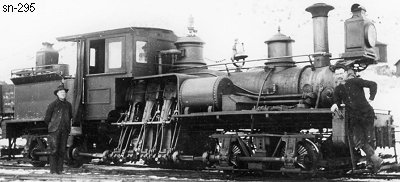

Photo Credit:
by H. G. Havenor (c1900)
Shop Number 295 - Built for: Ogden City RY
{259th Lima Built Shay}
Built:
7-26-1890
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9x8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,762 Lbs.
 Factor of
Adhesion:
4.74
 Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
780 Gallons
Empty Weight:
As built
37,500
Owners:
Ogden City RY Co., Ogden City RY #10, Ogden, UT
(1-5-1891) David Eccles #10, Mammoth, UT
(10-12-1894) Salt Lake & Mercur RR Co., Salt Lake & Mercur RR #10 later #1 "MINNIE", Fairfield, UT
(1900) Dabob Bay Log. Co., Dabob, WA
(1-1921) Devitt Lbr. Co., Devitt, OR
(10-1921) Mowry Log. Co., (Bade Lbr. Co.) #2, Glenwood, OR
(7-1927) Shanghai Building Co., Devitt, OR
Disposition: (after 8-31-1924) Scrapped
Additional Notes:
