Lima Locomotive Works, Inc.

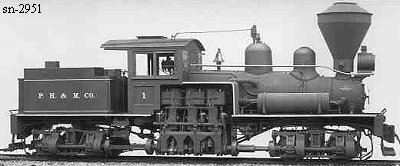

Photo Credit:
Left: Jack Deo collection
Right: George R. Kadelak collection (BP 11-1917)
Shop Number 2951 - Built for: Piqua Handle & Mfg. Co.
{2,386th Lima Built Shay}
Built:
11-16-1917
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
5.83
 Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
69,000
Owners:
Piqua Handle & Mfg. Co. #1, Michigamme, MI
Loaned to: Limpert & Howe #1, Thomaston, MI
(by 9-4-1921) Leased to: Schneider & Brown #1, Jack's Spur, MI
The Piqua Handle & Mfg. Co. #1, Jack's Spur, MI
Disposition: Scrapped
Additional Notes:
