Lima Locomotive Works, Inc.

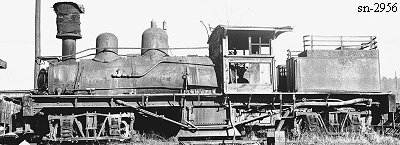

Photo Credit:
by C. W. Witbeck (early 1942) from David Price collection
Shop Number 2956 - Built for: Wood-Russ Lbr. Co.
{2,390th Lima Built Shay}
Built:
12-15-1917
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
18,623 Lbs.
Factor of
Adhesion:

4.32
Maximum
Safe Speed:

13.6
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
66,000
Owners:
Wood-Russ Lbr. Co. #4, Red Lick, MS
(2-9-1923) Central Lbr. Co. #4, McCalls, MS
(2-18-1924) Central Lbr. Co. #4, Quentin, MS
Disposition: (4-1942) Scrapped
Additional Notes:
