Lima Locomotive Works, Inc.

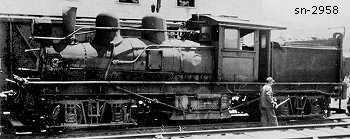

Photo Credit:
Left Side: by unknown
Right & Front Views:
John Henderson collection (1921-22)
Shop Number 2958 - Built for: Woodstock Lbr. Co.
{2,392nd Lima Built Shay}
Built:
1-2-1918
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.90
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
89,300
Owners:
Woodstock Lbr. Co., Beebe River RR #1, Beebe River, NH
(5-17-1924) Parker-Young Co., East Branch & Lincoln RR #1 (2nd) later #4 (2nd)[in 1926], Lincoln, NH
(10-6-1946) Marcalus Mfg. Co., East Branch & Lincoln RR #4 (2nd), Lincoln, NH
Disposition: (1946) Scrapped at Lincoln, NH
Additional Notes: The Lima builder's plate was salvaged and is at Clark's Trading Post, where sn-3066 survives.
