Lima Machine Works

Photo Credit:
Benjamin F. G. Kline Jr. collection

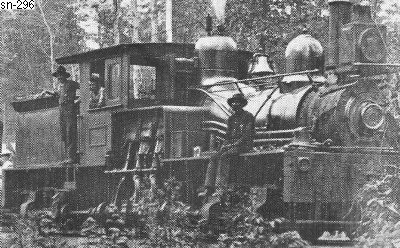

Shop Number 296 - Built for: Northwest Machinery Co. (D) (cancelled)
{260th Lima Built Shay}
Built:
3-31-1890
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,179 Lbs.
Factor of
Adhesion:

4.51
Maximum
Safe Speed:

16.3
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
1,038 Gallons
Empty Weight:
As built
46,700
Owners:
C. H. Moore #296, Clermont, PA
Thomas C. Wainman, Clermont, PA
Kuhns & Goodwin #296, Dunlo, PA
F. A. Blackwell, (Howard & Perley Lbr Co.) North Bend & Kettle Creek RR #1, Gleasonton, PA
Blackwell & Webb, North Bend & Kettle Creek RR #296, North Bend, PA
Blackwell & Webb, Westboro, WI
Blackwell Lbr. Co., Fernwood, ID
Lane Lbr. Co., Harrison, ID
(4-2-1923) Milwaukee Lbr. Co. #77, St. Maries, ID
(11-6-1929) For Sale
Disposition: Scrapped
Additional Notes: new boiler 2-24-1915
