Lima Locomotive Works, Inc.

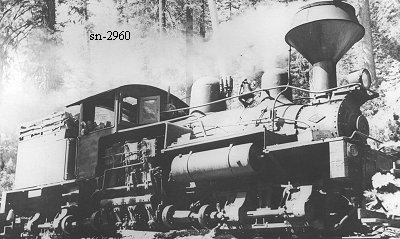

Photo Credit:
Malory Hope Ferrell collection (1940)

Shop Number 2960	-	Built for: Mountain Copper Co. Ltd.
{2,394th Lima Built Shay}

Built: 1-16-1918	Class: B 36-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 10
Gear Ratio: 2.05	Wheel Dia.: 29"	Gauge: 36"	Boiler: [Style - Dia.] E.W.T. - 39.375"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 14,316 Lbs.	Factor of Adhesion: 5.65	Maximum Safe Speed: 16.8
Fuel Type: Oil	Fuel Capacity: 490 Gals.	Water Capacity: 1,200 Gallons	Empty Weight: As built 67,900
Owners: Norman B. Livermore & Co. (D), San Francisco, CA Mountain Copper Co. Ltd., Iron Mountain RY #10, Keswick, CA (6-15-1931) Michigan-California Lbr. Co. #12, Camino, CA
Disposition: (1950) Scrapped
Additional Notes:
