Lima Locomotive Works, Inc.
Photo Credit:

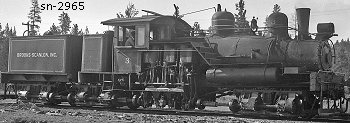

Left: Martin E. Hansen collection (6-13-1949)

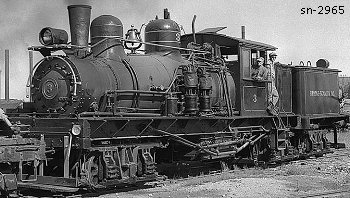

Right: Martin E. Hansen collection (6-1948)
Shop Number 2965 - Built for: Brooks-Scanlon Lbr. Co.
{2,399th Lima Built Shay}
Built:
3-15-1918
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.49
 Maximum
Safe Speed:
19.0
Fuel Type:
Wood / Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
4,000 Gallons
Empty Weight:
As built
135,200
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Brooks-Scanlon Lbr. Co., #3, Bend, OR
(1955) Bend Iron Works (D), Bend, OR for scrapping
Disposition: (1955) Scrapped
Additional Notes:
