Lima Locomotive Works, Inc.

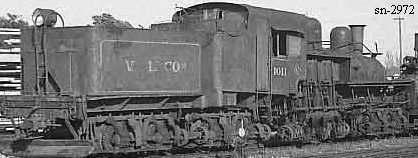

Photo Credit:
Martin E. Hansen collection (c1950)
Shop Number 2972 - Built for: A. H. Guthrie & Co.
{2,406th Lima Built Shay}
Built:
5-2-1918
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
5.28
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
128,600
Owners:
A. Guthrie & Co. #216, Casland, WA
(1921) Brooks-Scanlon-O'Brien, Ltd., Eagle River & Northern RY #216 > 3
, Stillwater, BC, CAN
Leased to: Michigan Puget Sound Lbr. Co. #216, Campbell River, BC, CAN
(1929) Campbell River Tbr. Co., Ltd. #216, Campbell River, BC, CAN
Victoria Lbr. & Mfg. Co., Ltd. #11, Chemainus, BC, CAN
(5-9-1944) Victoria Lbr. Co., Ltd. #11 later (in 1950) #1011, Chemainus, BC, CAN
(10-1-1951) MacMillan & Bloedel Ltd. #1011, Chemainus, BC, CAN
Disposition: (1953) Scrapped
Additional Notes: Converted to oil burner
(1950) Victoria Lbr. Co., Ltd. Shays renumbered when radios were added
