Lima Locomotive Works, Inc.

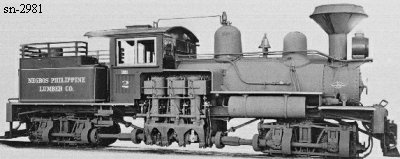

Photo Credit:
George R. Kadelak collection (BP 7-1918)
Shop Number 2981 - Built for: The Negros Philippine Lbr. Co.
{2,415th Lima Built Shay}
Built:
7-24-1918
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
42"
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,315 Lbs.
 Factor of
Adhesion:
6.03
 Maximum
Safe Speed:
16.8
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
73,300
Owners: (Includes new data after 2018 Shay book completed)
The Negros Philippine Lbr. Co. #2, Cadiz, Negros, U. S. Territory of the Philippines
(5-1948) Philippine Lbr. Mfg. Co. #2, Catabangan, Luzon, U. S. Territory of the Philippines
Disposition: Scrapped
Additional Notes: Shipped to: Manila, Philippine Islands
